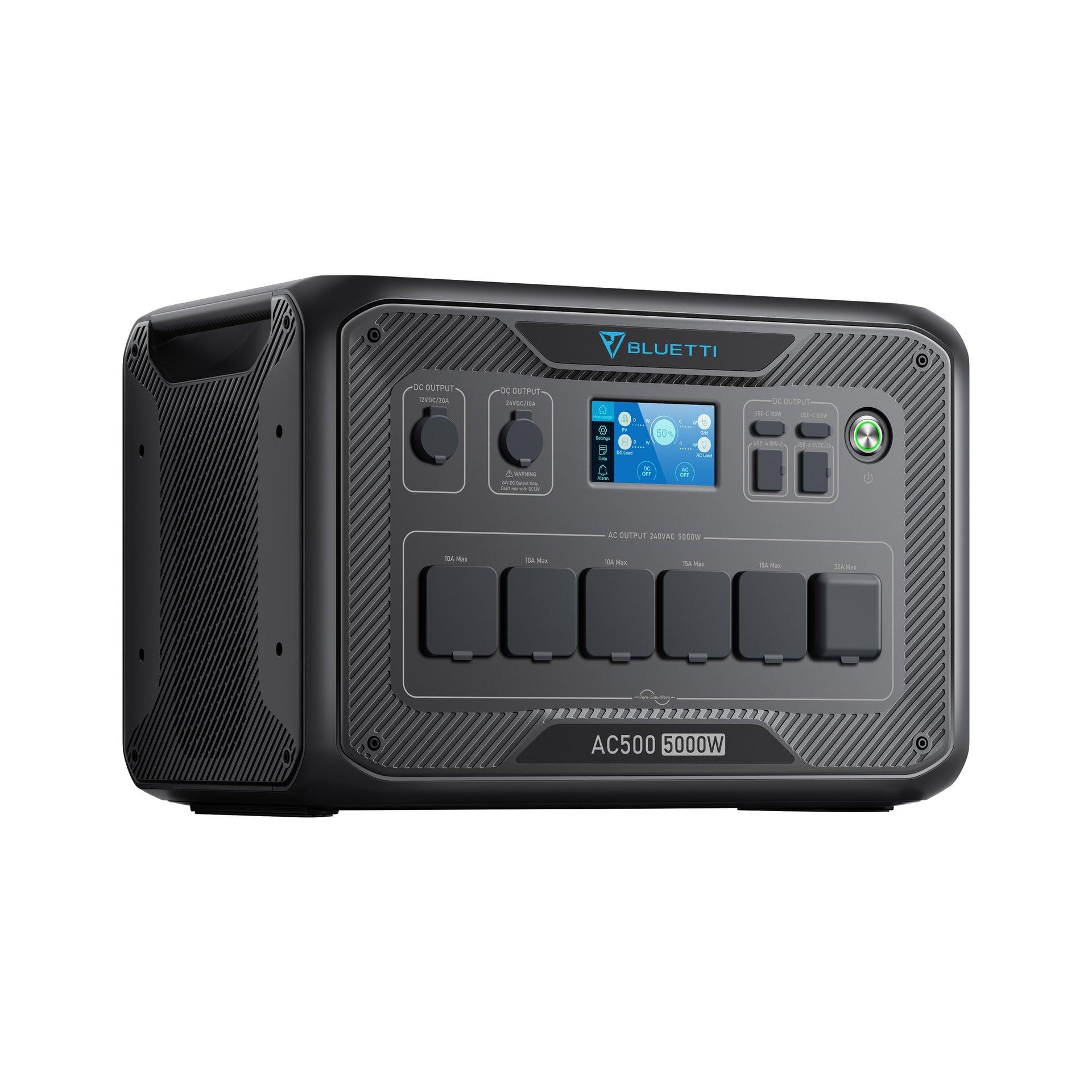

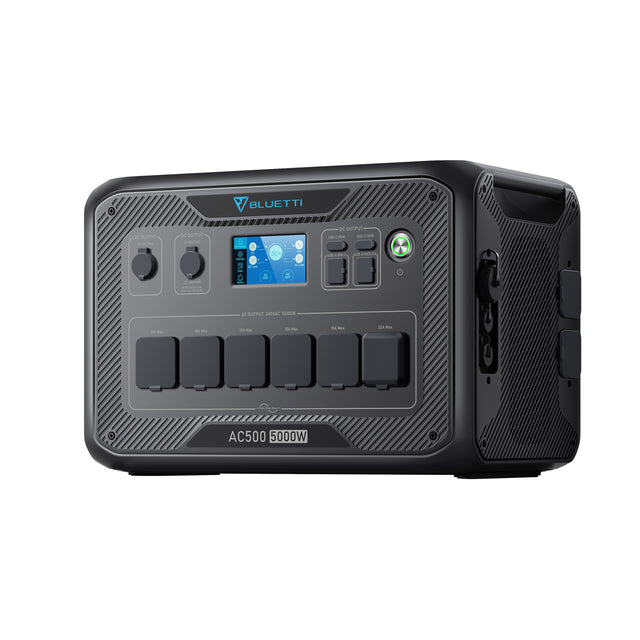

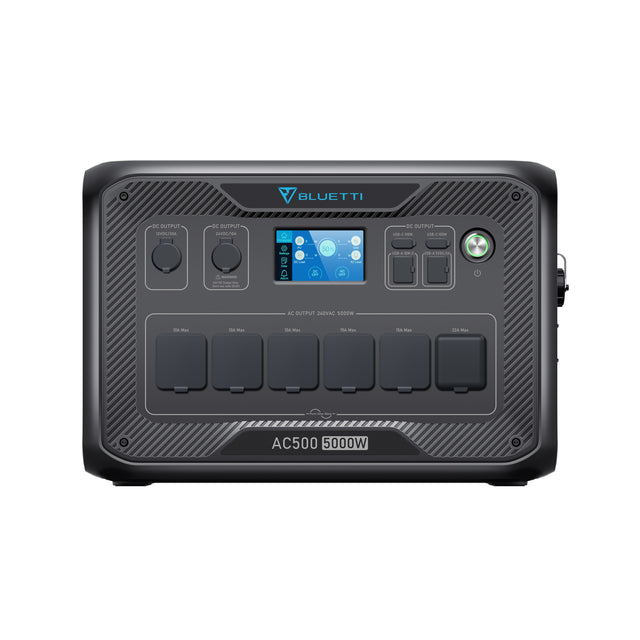

BLUETTI AC500 Inverter Module Generator – 5,000W Pure Sine Wave, Expandable, Smart App Controlled

Unleash serious power with the BLUETTI AC500 Inverter Module Generator—a 5,000W pure sine wave inverter (10,000W surge) designed for ultimate flexibility, off-grid energy independence, and robust home backup. Compatible with up to 6 x B300S or 4 x B300K expansion batteries, and capable of dual AC + solar charging up to 8,000W, the AC500 is a next-level energy solution for serious users.

✔ 5,000W Pure Sine Wave AC Output (10,000W Surge) – Power heavy-duty appliances and tools
✔ Compatible with B300S and B300 Batteries – Expand capacity up to 18,432Wh
✔ Smart App Control – Monitor and manage via Wi-Fi & Bluetooth
✔ 3,000W Max Solar Input – Efficient off-grid capability
✔ Dual Charging Support (AC + Solar) – Max input up to 8,000W
✔ 16 Output Ports for 99% of Devices – AC, USB-C, USB-A, 12V, RV and wireless
✔ 24/7 UPS Functionality – Instant backup for your home
✔ 4-Year Warranty – Built for long-term performance

Power Anything. Anywhere. Anytime.

Whether you're powering a remote cabin, your off-grid home, or backing up a business or critical systems, the AC500 delivers scalable, intelligent power with unmatched reliability. It’s quiet, clean, solar-ready, and perfect for high-demand users who want more control and freedom.

⚠️ Note: Requires at least one B300K battery module to operate. Not a standalone power source.

Key Features:

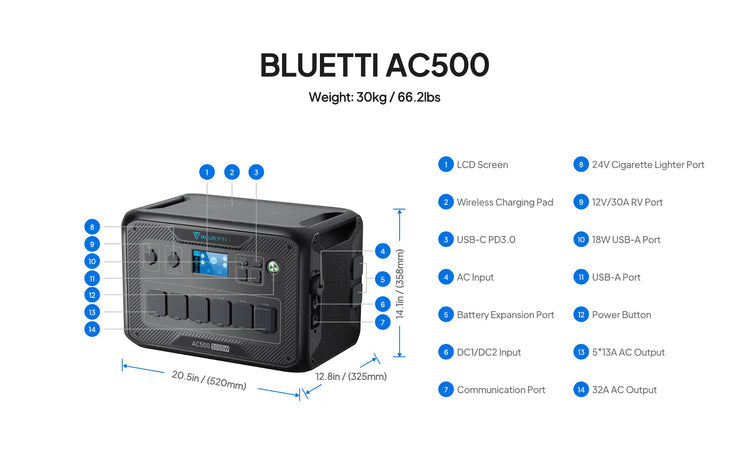

✔ AC Output:
• 3 x 240V/10A
• 2 x 240V/15A
• 1 x 240V/32A
✔ USB-A Ports: 2 x 5V/3A, 2 x 18W
✔ USB-C Ports: 2 x 100W Max
✔ DC Ports:
• 1 x 12V/30A RV Outlet
• 1 x 24V/10A Car Outlet
✔ Wireless Charging Pads: 2 x 15W
✔ Inverter Type: Pure Sine Wave
✔ Surge Power: 10,000W
✔ App Control: Yes – via Wi-Fi & Bluetooth
✔ UPS Functionality: Yes – seamless switch-over during blackouts

Input & Charging:

AC Charging (With B300S):
• 4,500W (1 x B300S)
• 5,000W (2+ x B300S)
Solar Input: 3,000W Max (VOC 12–150VDC, 15A)
Car Charging: 12V/24V via vehicle outlet
Dual Charging (AC + Solar):
• Max 8,000W with 2 or more B300S batteries

Specifications:

Battery Compatibility: B300S (up to 6), B300K (up to 4)
Simultaneous Charge/Discharge: Yes
Weight: 30 kg
Dimensions: 52 x 32.5 x 35.8 cm
Operating Temperature: -20°C to 40°C
Storage Temperature: -25°C to 40°C
Certifications: UL2743, CE, UKCA, RCM, TELEC, FCC ID
Warranty: 48 Months

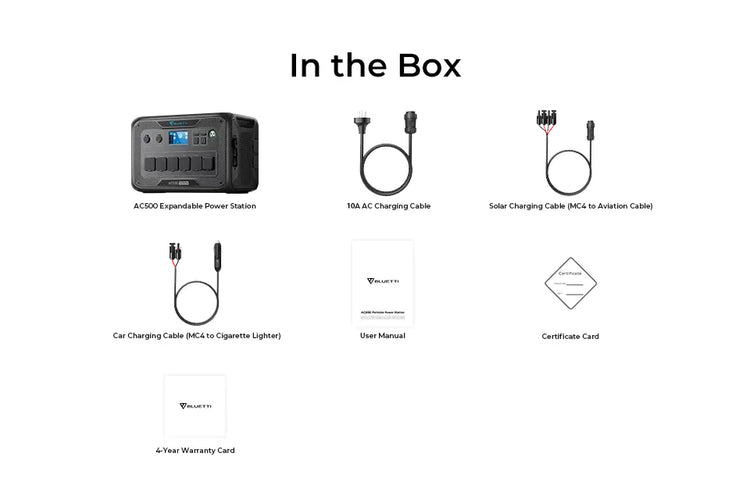

What’s in the Box?

✔ 1 x BLUETTI AC500 Inverter Module Generator
✔ 1 x AC Charging Cable
✔ 1 x Solar Charging Cable
✔ 1 x Car Charging Cable
✔ 1 x User Manual and Warranty Card

⚡ Power your home or off-grid system with industrial-level reliability—BLUETTI AC500 is the heart of your advanced energy solution.
