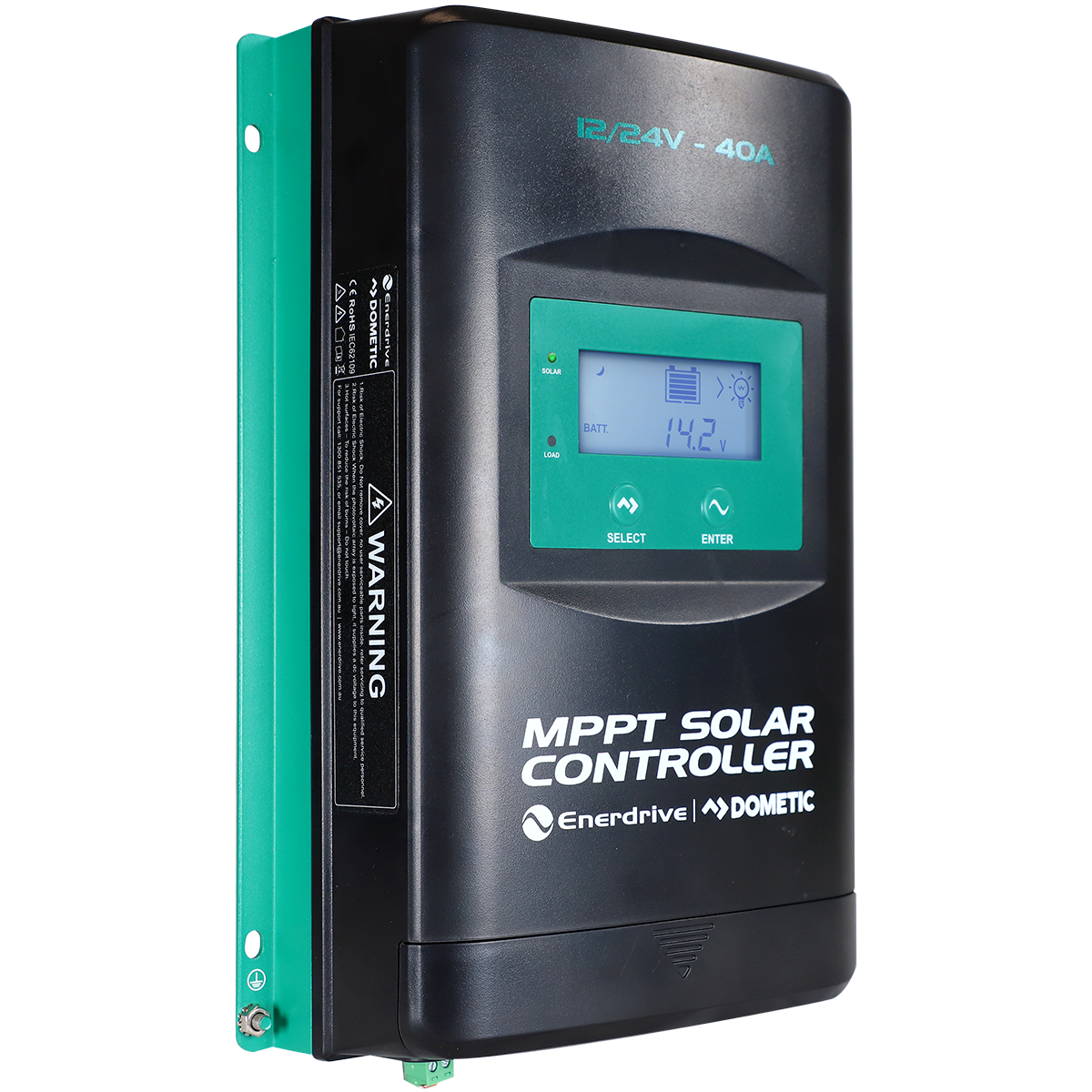

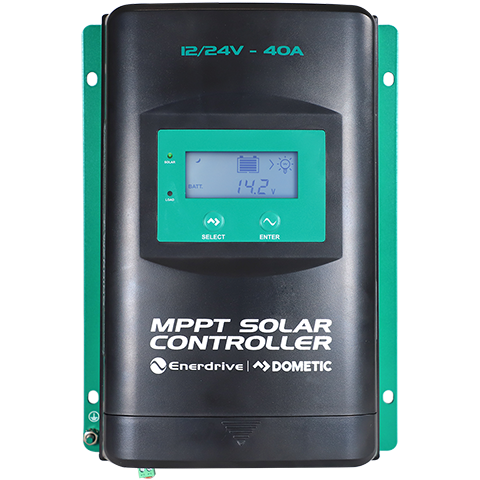

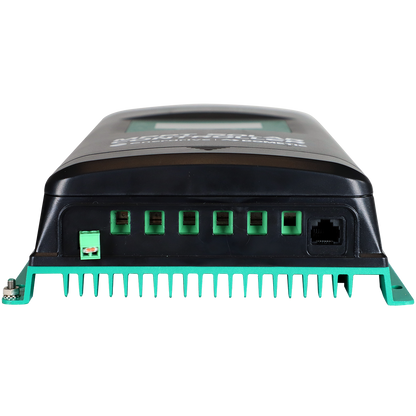

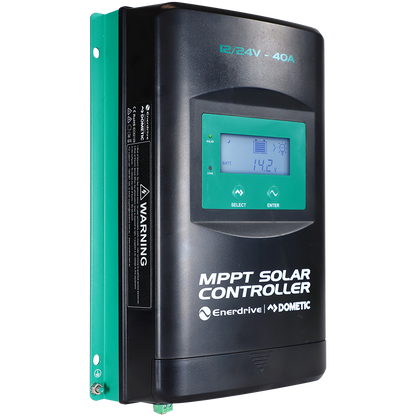

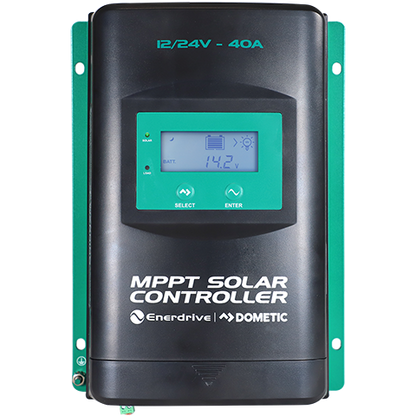

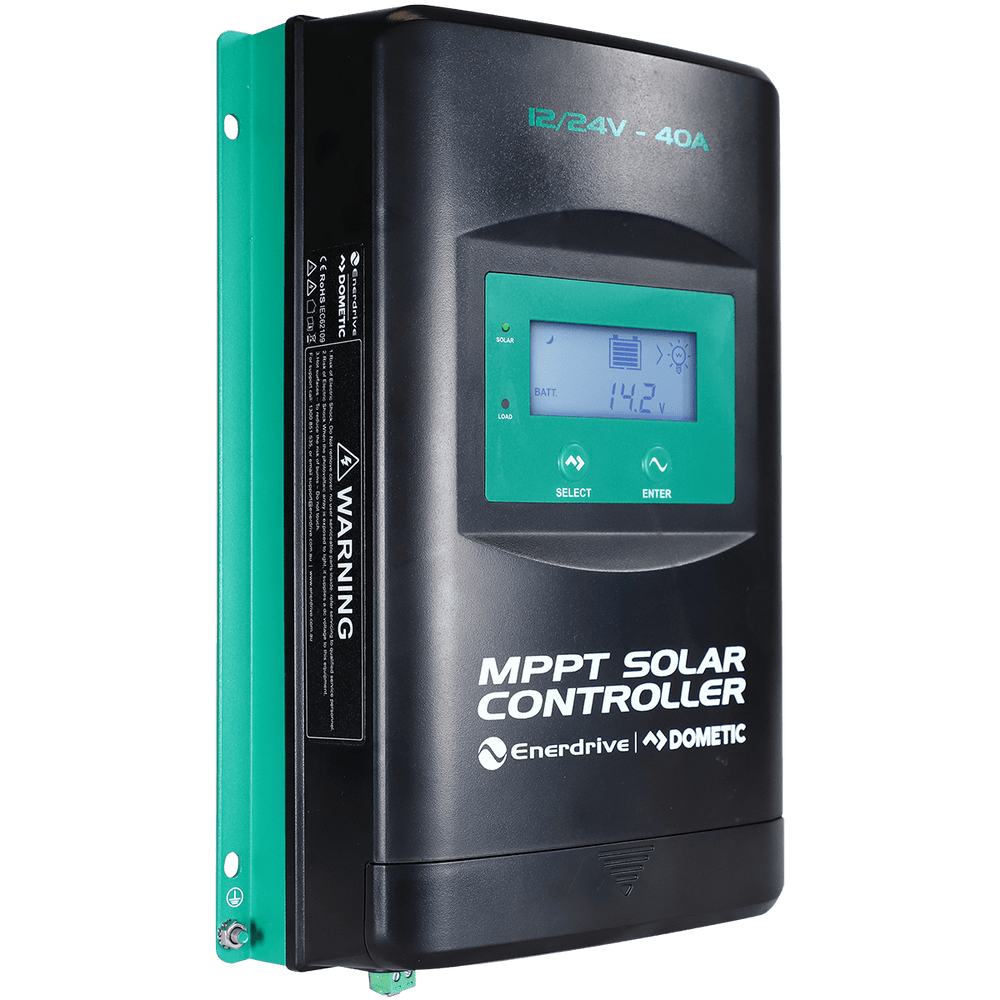

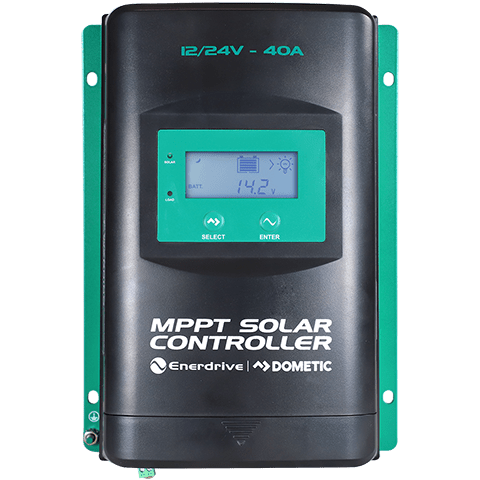

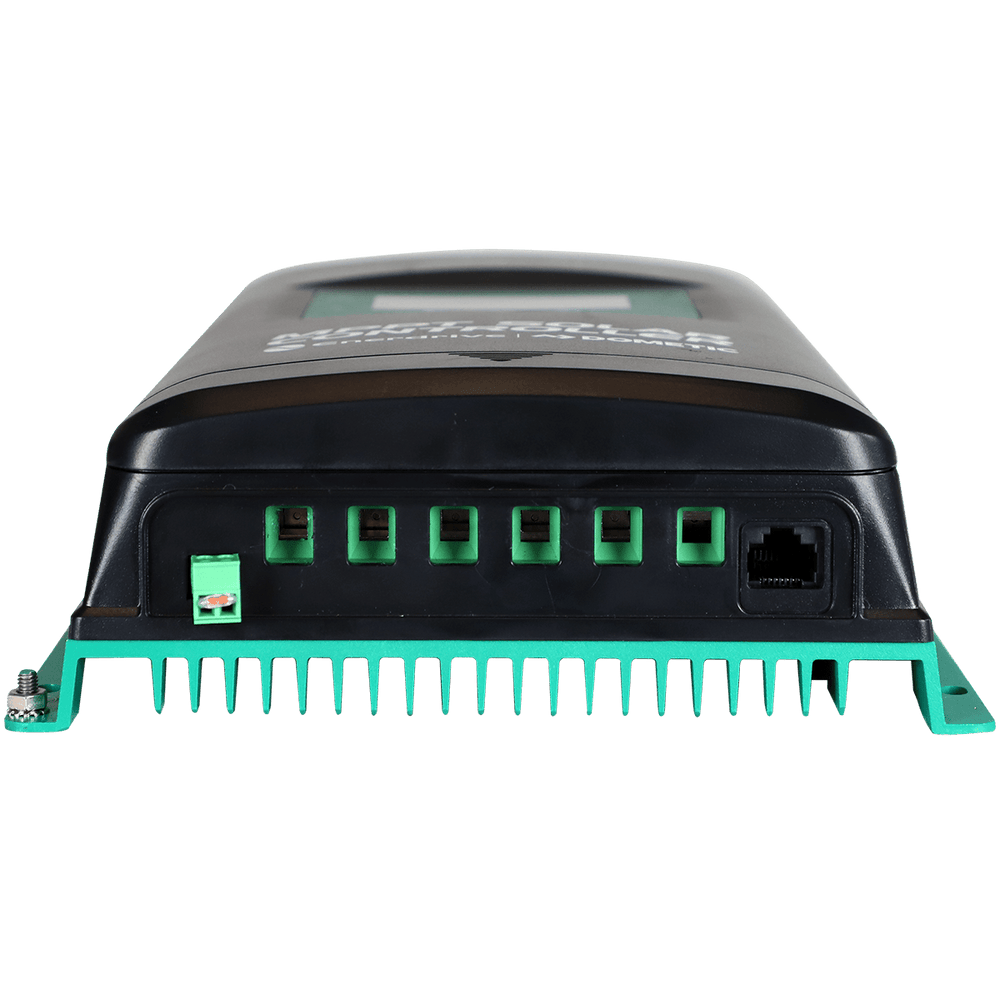

Enerdrive MPPT Solar Charge Controller – 40A 12/24V (w/ LCD Display)

Efficient, Intelligent Solar Charging for Your 12V or 24V Setup

Get more from your solar panels with the Enerdrive MPPT 40 Amp Solar Controller, designed for off-grid, RV, marine, and mobile applications. Built with advanced MPPT tracking technology and a crystal-clear LCD interface, this smart controller delivers up to 30% more efficiency than traditional PWM systems.

Whether you’re charging lithium or lead-acid batteries, the Enerdrive MPPT ensures maximum energy harvest, safe operation, and extended battery life—all in a compact, IP33-rated enclosure.

✅ Ultra-Fast MPPT Tracking
Maximise solar harvest with up to 99.5% tracking efficiency and 98.2% conversion efficiency.

✅ Intelligent 3-Stage Charging
Prolongs battery life and improves system performance with self-adaptive charging tailored to your battery type.

✅ Built-In Display + RS485 Port
Stay in control with real-time data, plus future-ready communication for remote monitoring applications.

✅ Comprehensive Protection
Guards against overcharging, over-discharging, reverse polarity, short circuit, and over-temperature scenarios.

🔧 Specifications:

• Model: EN43540
• Nominal Voltage: 12/24V Auto Select
• Battery Current Output: 40A Max
• Max PV Array Power (Recommended): 600W (12V) / 1200W (24V)
• Max Efficiency: 98.60%
• Dimensions: 255 x 185 x 67.8mm
• Mounting Hole Size: 200 x 176mm
• Weight: Approx. 0.6kg
• IP Rating: IP33

Perfect for smaller solar systems or as a secondary controller, the Enerdrive 40A MPPT brings peace of mind and professional-grade reliability to any off-grid power setup.
