Maximise your off-grid charging potential without the back-breaking weight. The Renogy 400W Compact Portable Solar Panel combines exceptional power output with a space-saving, lightweight design; perfect for serious off-grid setups, caravanners, and 4WD adventurers who need high-wattage solar in a portable form.
Weighing only 13.7kg, this high-capacity solar suitcase folds down small for transport, yet unfolds to deliver a massive 400W output. Built with a durable fiberglass backsheet and anodized aluminium frame, it’s ready for harsh Aussie conditions. The ETFE-coated solar surface enhances durability and efficiency, while the IP67 protection ensures weather resistance on the road.
With sturdy adjustable kickstands and MC4 connectors, setup takes under a minute; so you can start charging your lithium batteries, power stations, or 48V+ DC systems straight away.
🔋 Key Features
-
Massive 400W Output
High-wattage solar generation for fast charging of large off-grid battery banks and portable power stations.
-
Ultra-Portable Design

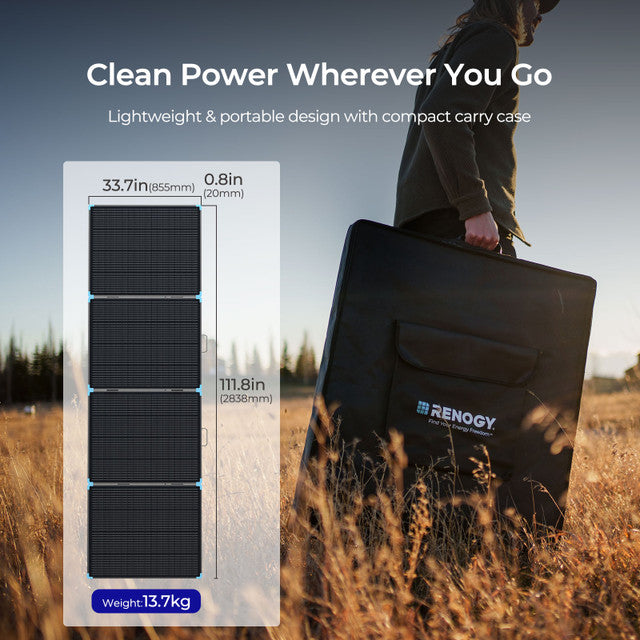

Weighs just 13.7kg and folds down to 70.8cm x 85.5cm x 8cm for easy storage in your caravan, ute, or canopy.
-
Built for Harsh Environments
Fiberglass backsheet, anodised aluminium frame, and ETFE-coated panels for maximum longevity.
-
Weather & Dust Resistant
IP67-rated for reliable performance in rain, dust, and tough outdoor conditions.
-
Quick Setup

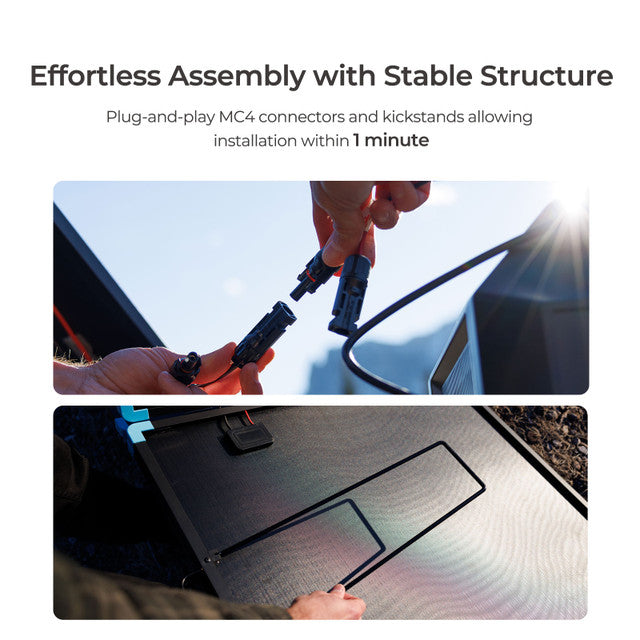

Sturdy aluminium kickstands and MC4 connectors for plug-and-play charging in under a minute.
🔧 Specifications
-
Wattage: 400W
-
Open Circuit Voltage (Voc): 47.2V
-
Short Circuit Current (Isc): 11A
-
Optimum Operating Voltage: 40V
-
Optimum Operating Current: 10A
-
Max Series Fuse Rating: 15A
-
Max System Voltage: 600VDC
-
Operating Temperature: -40°C to +85°C
-
Dimensions (Unfolded): 2838 x 855 x 20 mm
-
Dimensions (Folded): 708 x 855 x 80 mm
-
Weight: 13.7 kg
-
Waterproof Rating: IP67
💡 Note: Ensure your portable power station or battery system can accept DC input voltages above 48V before connecting.
📦 Includes: 1x Renogy 400W Compact Portable Solar Panel, MC4 Connectors, Kickstands
