Reliable On Demand Water Pressure for Caravans, Campers and Boats
If you are building or upgrading your 12V water system, the Seaflo 22 Series Diaphragm Pump delivers compact size, strong pressure and dependable performance in one tough little unit.
Designed for caravans, camper trailers, boats and off grid setups, this 12V diaphragm water pump provides automatic on demand water pressure to sinks, showers and spray outlets without complicated plumbing.
Turn the tap on and it runs.
Turn the tap off and it stops.
Simple, efficient and built for real touring.
Key Features
5 Litres Per Minute Flow
Delivers 1.3 to 1.4 GPM or 5.0 to 5.3 litres per minute, ideal for supplying one or two 3/8 inch outlets at the same time.
On Demand Pressure System
Built in pressure switch automatically starts and stops the pump when a tap or outlet is opened and closed.
Self Priming and Run Dry Safe
Self priming up to 1.8 metres suction lift and safe to run dry without damage. Perfect for touring conditions where tanks may occasionally run low.
Adjustable Pressure up to 100 PSI
Capable of delivering up to 100 PSI with adjustable pressure settings, making it suitable for pressurised caravan plumbing systems.

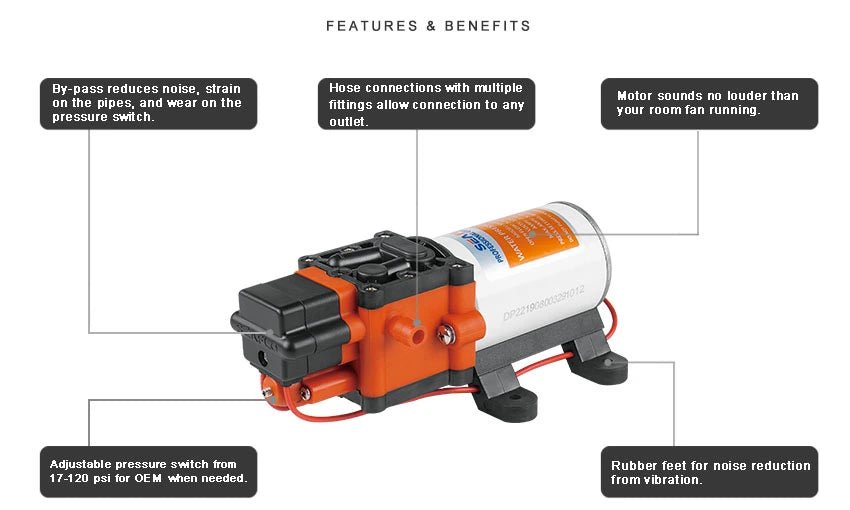

Bypass Technology Reduces Cycling
Internal bypass system reduces rapid cycling and extends pump life while providing smoother water flow.

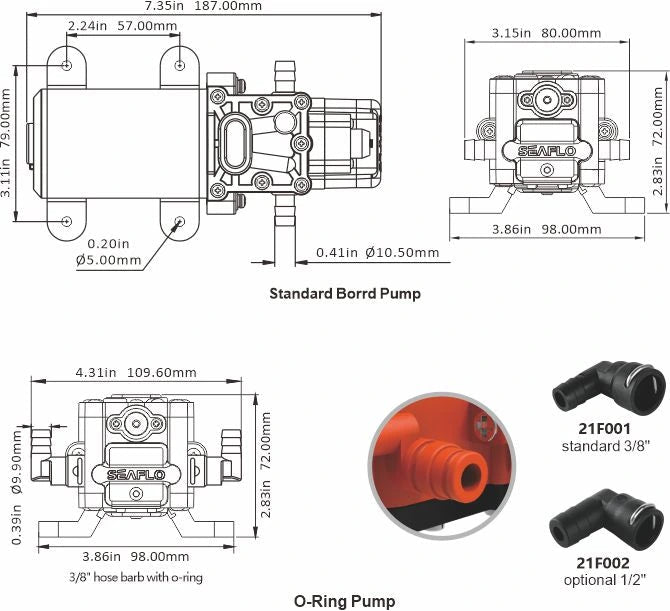

Supplied with Right Angle Hose Barbs
Includes both 3/8 inch and 1/2 inch right angle hose barbs for flexible plumbing installation in tight caravan spaces.

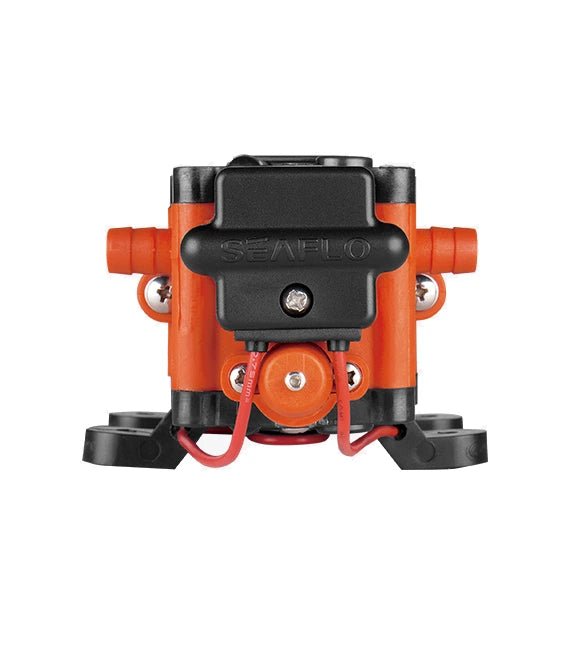

Bare Wire Leads for Flexible Installation
Comes with 18 AWG bare wire leads, allowing you to wire it exactly how you prefer. Connect via fuse block, switch panel or direct battery connection to suit your setup.
Continuous Duty and Quiet Operation
Designed for continuous duty use with low operating noise, making it ideal for caravan parks and off grid camps.
3 Year Warranty for Peace of Mind
Backed by a genuine 3 year manufacturer warranty, giving you confidence this pump is built for long term use in caravan and marine environments.
Ideal For
- Caravan water systems
- Camper trailer plumbing
- 4WD touring setups
- Boat and marine pressure systems
- Off grid cabins
- Water filtration and circulation systems
- Sink and shower installs
If you are running a pressurised water system in your caravan or camper, this is the correct style of pump.
Specifications
Model: SFDP1-013-100-22
Series: Seaflo 22 Series Diaphragm Pump
Voltage: 12V DC
Flow Rate: 5.0 to 5.3 litres per minute
Open Flow: 1.3 to 1.4 GPM
Shut Off Pressure: 60 to 100 PSI
Suction Lift: 1.8 metres
Maximum Temperature: 60 degrees Celsius
Current Draw: 5.0 Amp at 12V
Included Fittings: 3/8 inch and 1/2 inch right angle barbs
Lead Length: 18 AWG 24cm bare wire leads
Materials: EPDM valves and Santoprene diaphragm
Switch: Encapsulated pressure switch
Duty Rating: Continuous duty
Warranty: 3 Years
Built for Real World Touring
Compact, reliable and easy to wire into your 12V system, the Seaflo 22 Series pump is a proven solution for caravan and off grid water pressure systems across Australia.
Add it to your setup and enjoy steady, automatic water pressure wherever you park.
