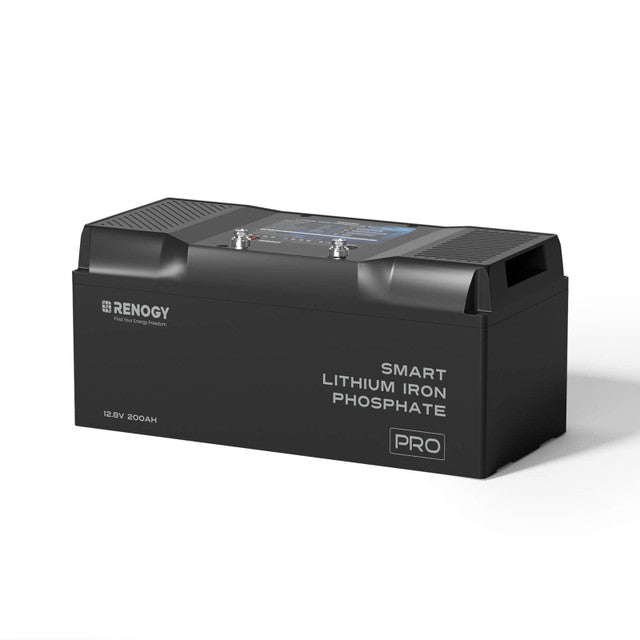

Whether you’re powering a caravan, off-grid cabin, or an overland 4WD setup, the Renogy 12V 200Ah Pro Deep Cycle Lithium Iron Phosphate Battery delivers maximum storage, safety, and control in one rugged package. Offering a massive 2560Wh of energy, this 2-in-1 powerhouse features both self-heating for cold-weather charging and Bluetooth connectivity for live system monitoring via the Renogy DC Home app.

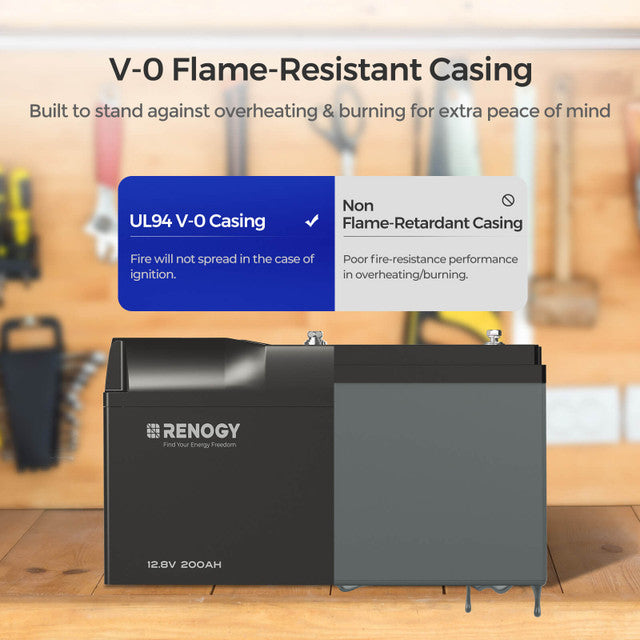

Built with an automotive-grade BMS offering over 60 advanced protection features, it safeguards against electrical and thermal hazards while ensuring long service life, rated for 5000 cycles at 80% DOD. The flame-retardant casing adds an extra layer of security, preventing vertical burning within 10 seconds.
Designed for extreme conditions, it’s IP67 waterproof, dust-proof, corrosion-resistant and supports parallel connections of up to 8 units, perfect for expanding your off-grid power bank to match your growing energy needs.
🔋 Key Features
-
Massive 200Ah Capacity
2560Wh of energy storage for high-demand off-grid setups.
-
Smart Connectivity
Bluetooth monitoring via Renogy DC Home app for real-time performance data.
-
Cold-Weather Ready
Integrated self-heating for charging in low temperatures.
-
Extreme Safety

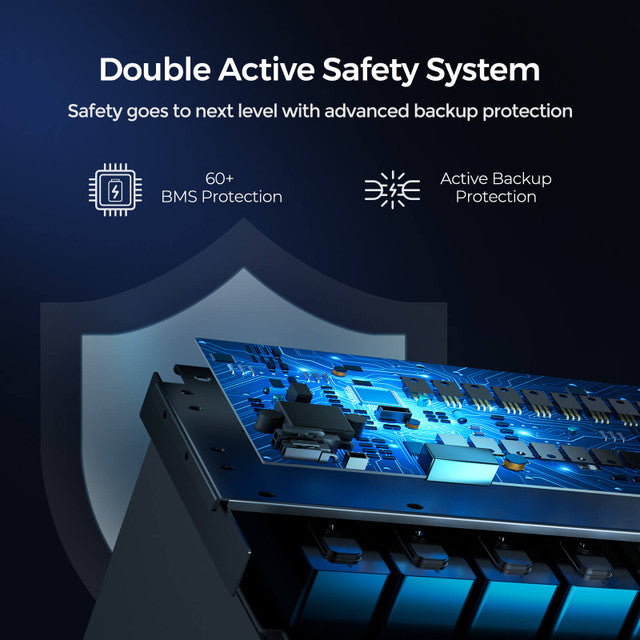

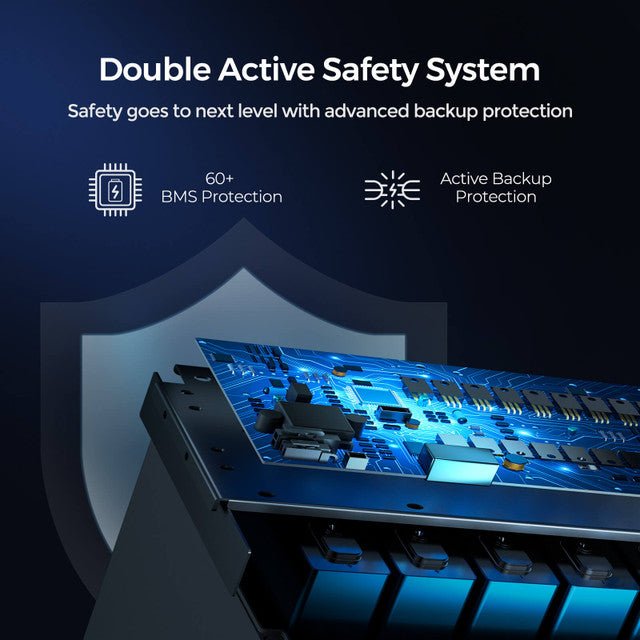

Over 60 EV-grade BMS protection alerts and flame-retardant casing.
-
Rugged & Weatherproof
IP67-rated against dust and water ingress; ISO 9227 corrosion-resistant.
-
Expandable System
Supports up to 8 units in parallel for large-scale energy storage.
🔧 Specifications
-
Nominal Voltage: 12.8V
-
Rated Capacity: 200Ah (2560Wh)
-
Cycle Life: 5000 cycles @ 80% DOD
-
Voltage Range: 10V–14.8V
-
Max Continuous Charge Current: 200A
-
Operating Temp (Charge): -20°C to +55°C
-
Operating Temp (Discharge): -20°C to +60°C
-
Storage Temp: -25°C to +65°C
-
Relative Humidity: 10%–95%
-
Dimensions (L x W x H): 467 x 212 x 208 mm
-
Weight: 23 kg
-
Terminal Bolt Size: 2 × M8 x 1.25 x 12 mm
-
Protection Rating: IP67
📦 Includes: 1x Renogy 12V 200Ah Pro LiFePO₄ Battery, Terminal Bolts
💡 Ideal for off-grid homes, caravans, marine, and overland applications requiring large-capacity, ultra-safe lithium storage.
